Medtronic PS Medical CSF-Flow Control Valves

The Medtronic PS Medical CSF-Flow Control valve is a pressure differential valve built to open at a set pressure.  In vivo, the pressure that the valve responds to is the difference between the intracranial pressure and the pressure of the space into which the distal end of the system is draining into (e.g., the intraperitoneal pressure).

Valve Design

Contoured Differential Pressure Valve, Regular and Small:

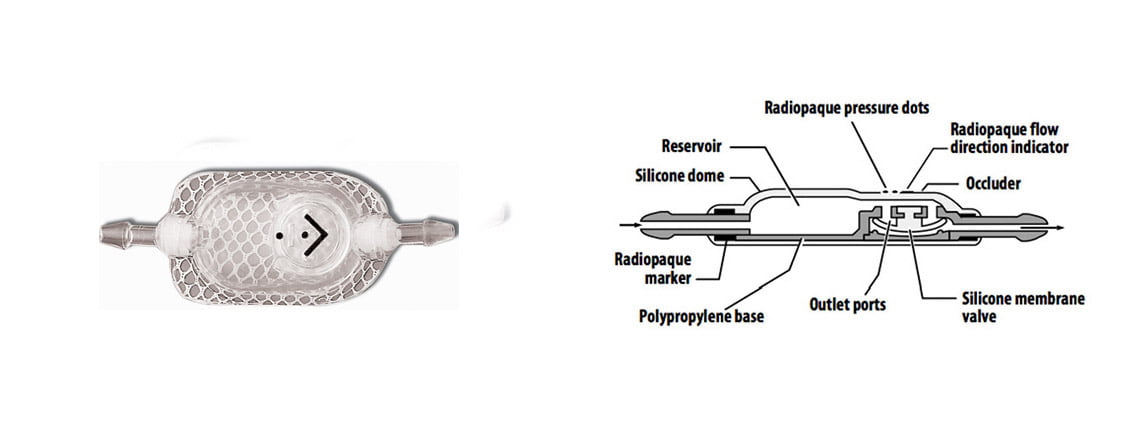

Contoured Differential Pressure Valve, Ultrasmall:

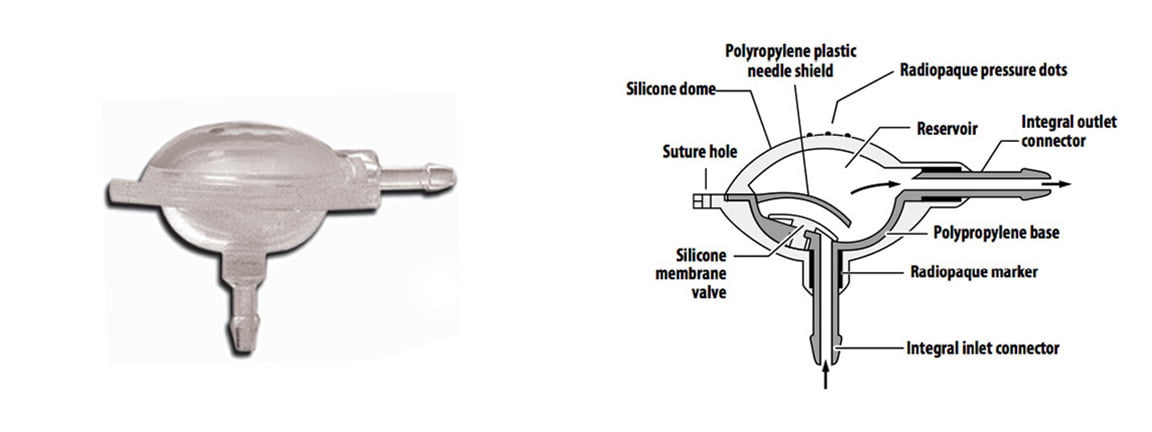

Burr Hole Differential Pressure Valve:

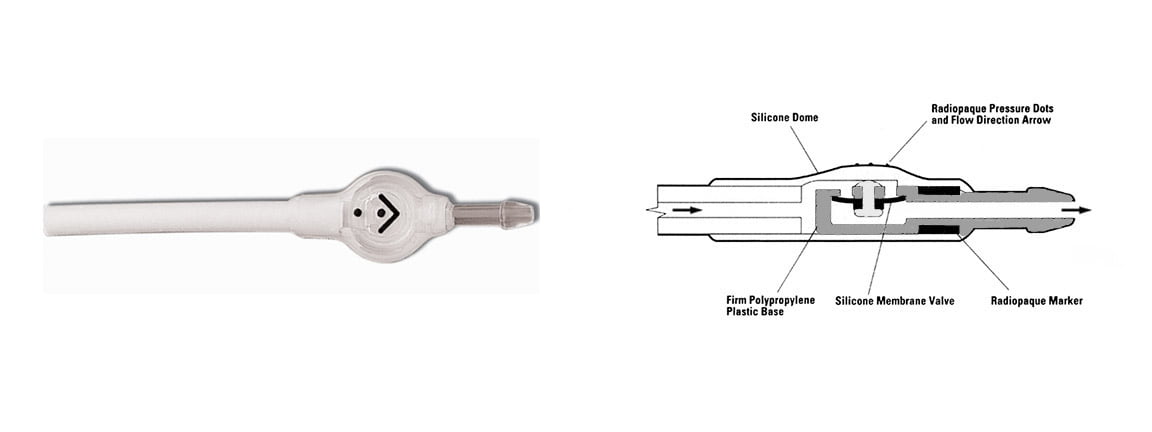

Button Differential Pressure Valve:



Radiographic Images

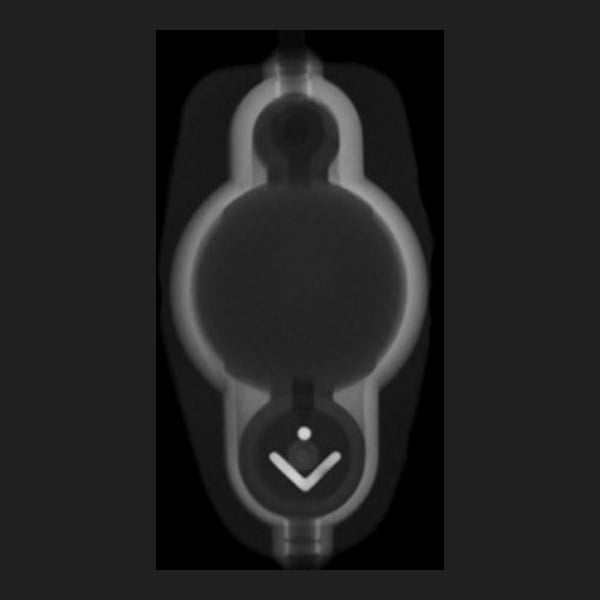

Contoured Regular Valve: Low Pressure

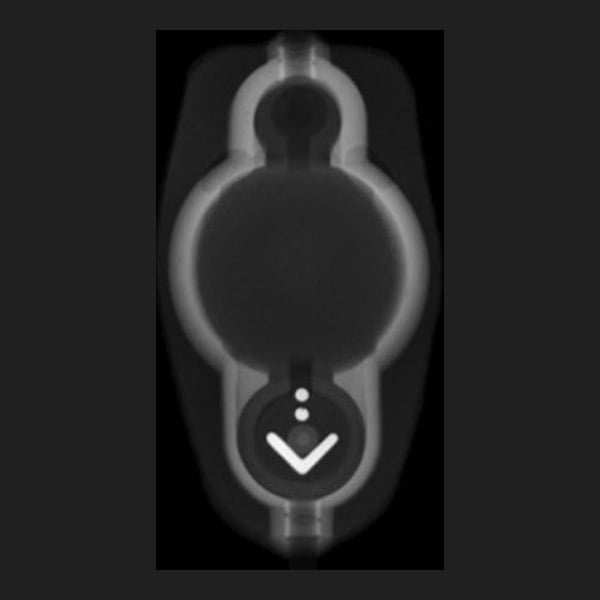

Contoured Regular Valve: Medium Pressure
Contoured Regular Valve: High Pressure

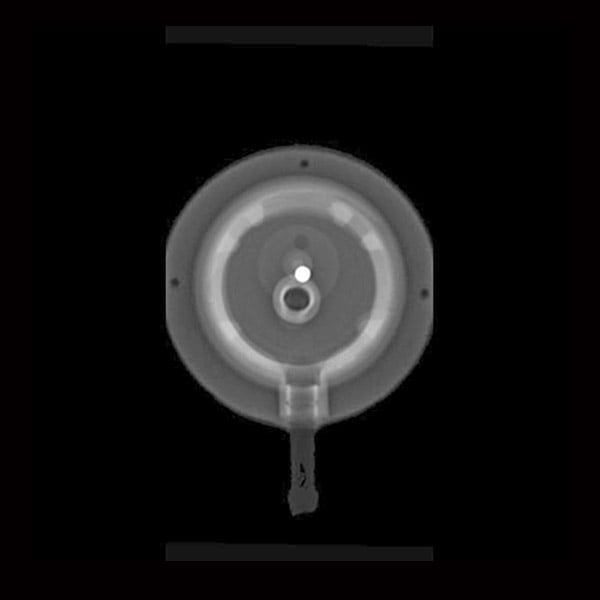

Burr Hole Valve: Low Pressure
Burr Hole Valve: Medium Pressure
Burr Hole Valve: High Pressure

Contoured Small Valve: Low-Low Pressure

Contoured Small Valve: Low Pressure

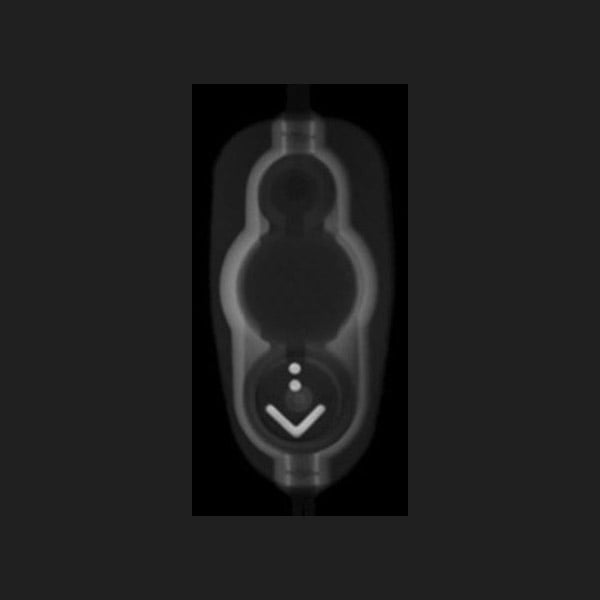

Contoured Small Valve: Medium Pressure

Contoured Small Valve: High Pressure

Ultra Small Valve: Low-Low Pressure

Ultra Small Valve: Low Pressure

Ultra Small Valve: Medium Pressure

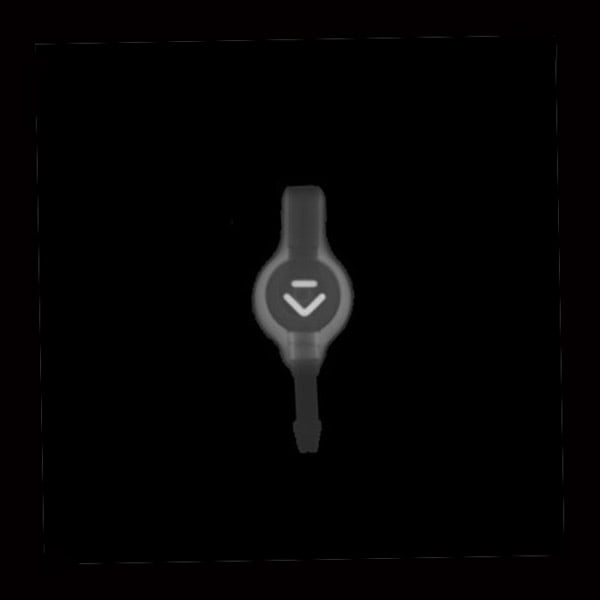

Button Valve: Low-Low Pressure
Button Valve Low:
Button Valve: Medium Pressure

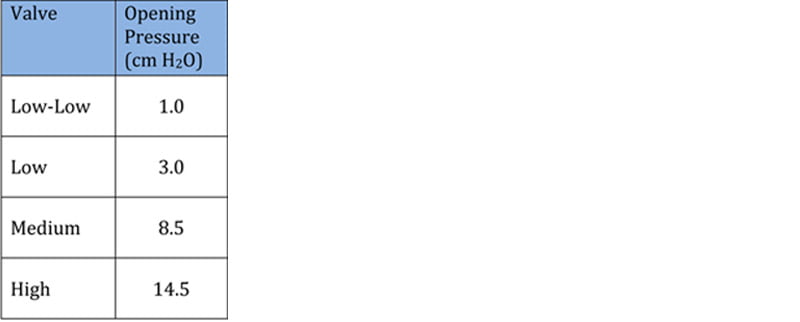

Valve Opening Pressures

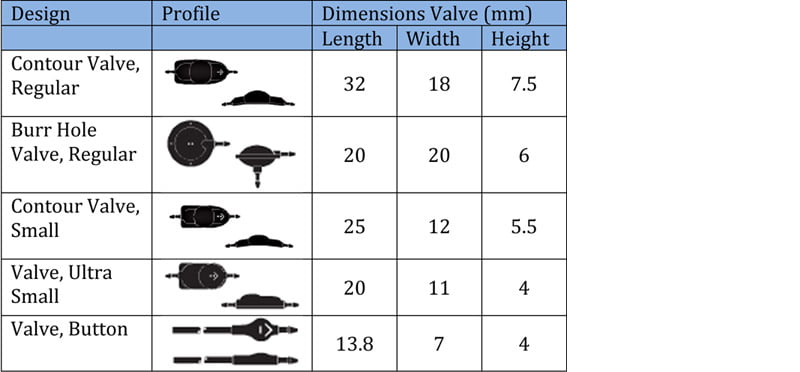

Valve Dimensions

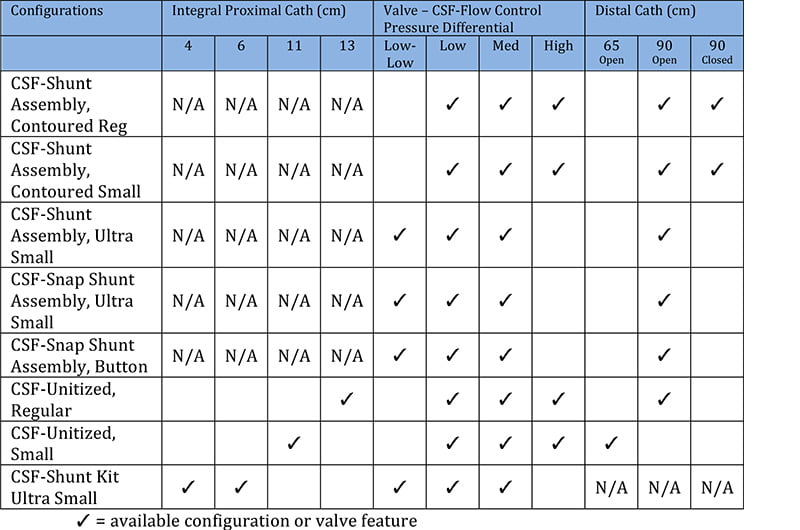

Valve Assemblies
