Aesculap miniNAV Pressure Differential Valve

This page was last updated on September 16th, 2017

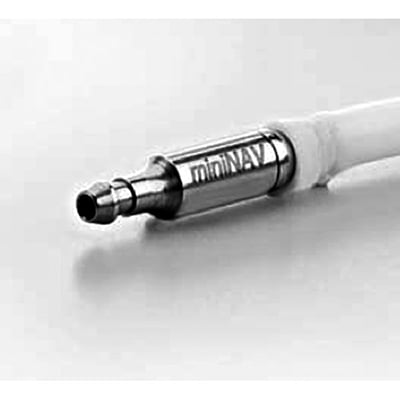

miniNAV Valve

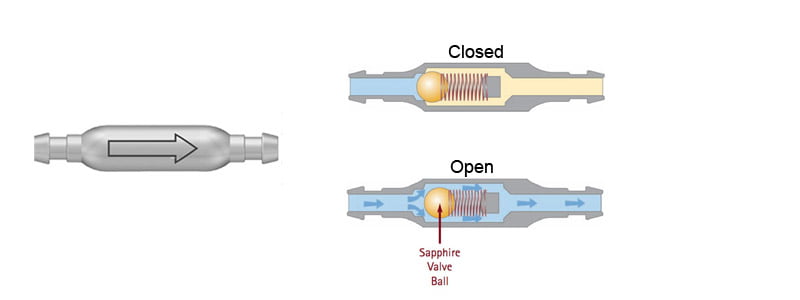

Valve Design

Radiographic Images

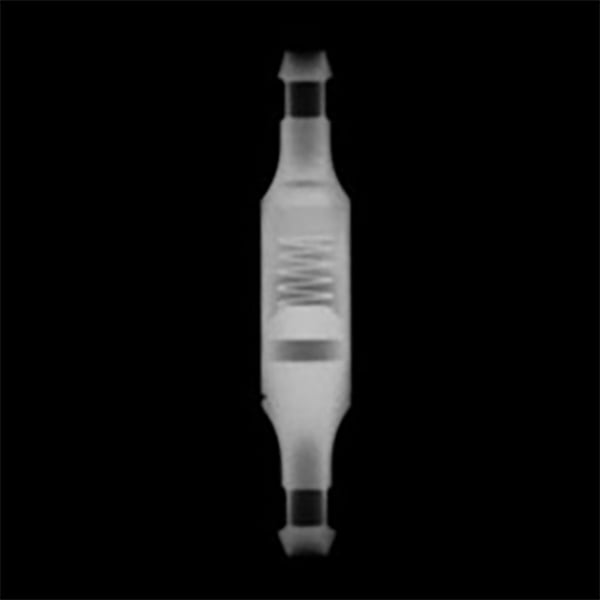

miniNAV 0 Valve

Note contour at ends of valve

miniNAV 0 Valve

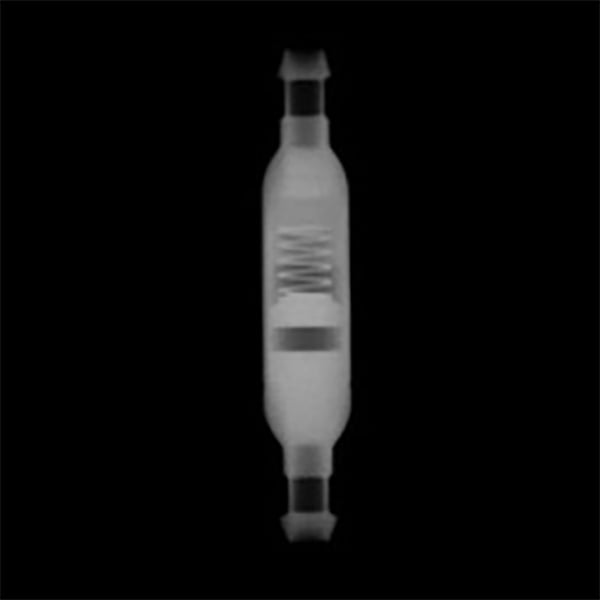

miniNAV 10 Valve

miniNAV 10 Valve

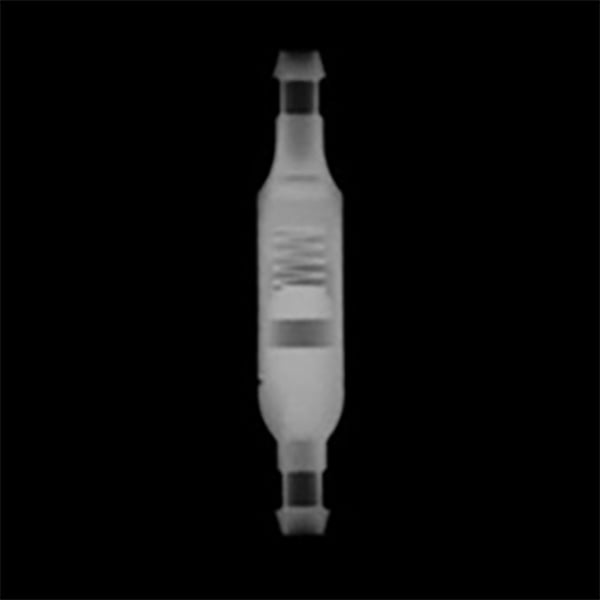

miniNAV 15 Valve

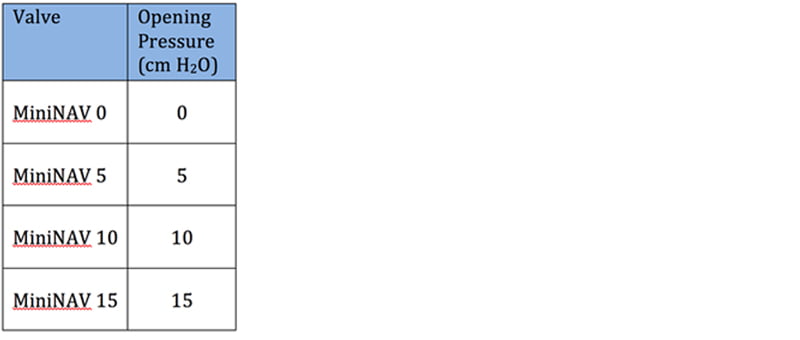

Valve Opening Pressures

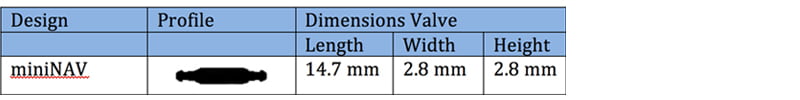

Valve Dimensions

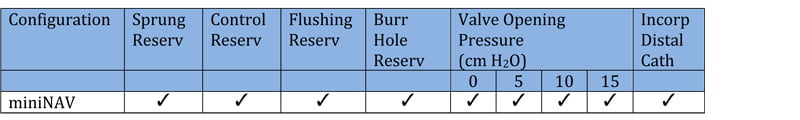

Valve Assemblies

Available configurations:
