Aesculap Gravity Activated Valves

The paediGAV, GAV and ShuntAssistant valves are designed to alter resistance to CSF flow through the shunt in response to changes in body position. As the body moves from the reclining position to the upright position a ball valve responds to gravity by closing. As pressure builds proximal to this valve it will reopened when a set pressure is reached. The GAV and paediGAV valves also contain a pressure differential valve proximal to the gravity activated valve while the ShuntAssistant is meant to be used with a separate, fixed or adjustable pressure differential valve.

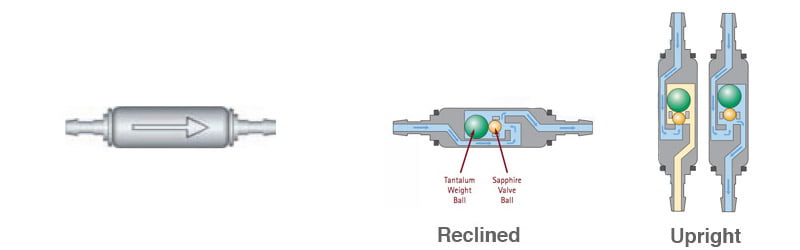

Valve Design

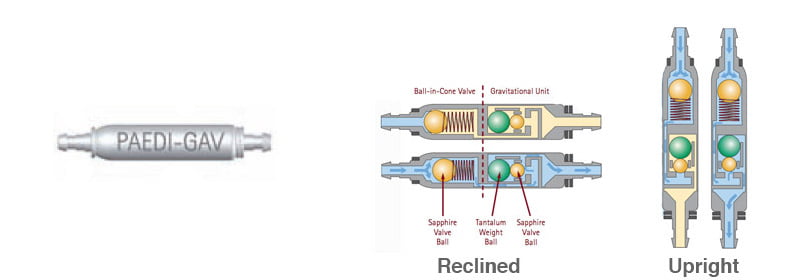

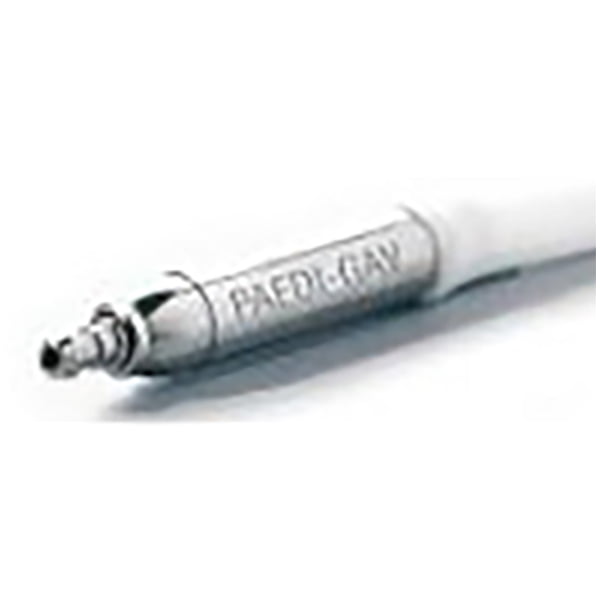

paediGAV Valve

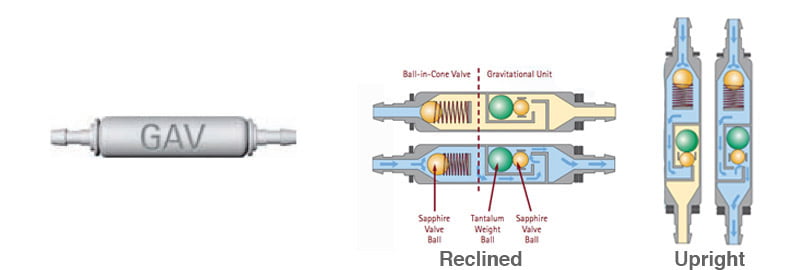

GAV Valve



ShuntAssstant Valve

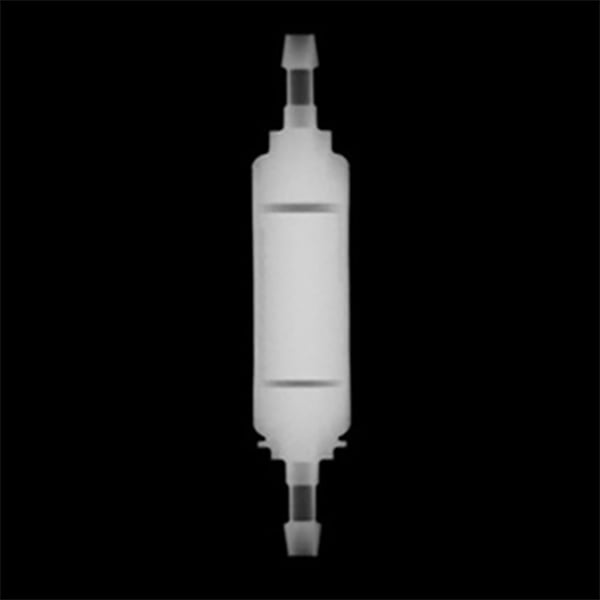

Radiographic Images

paediGAV Valves

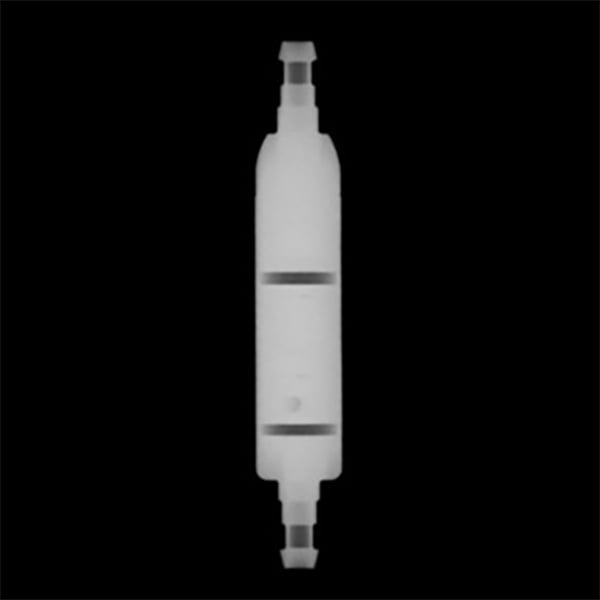

paediGAV 4/14 Valve:

paediGAV 4/19 Valve:
PaediGAV 4/24 Valve:

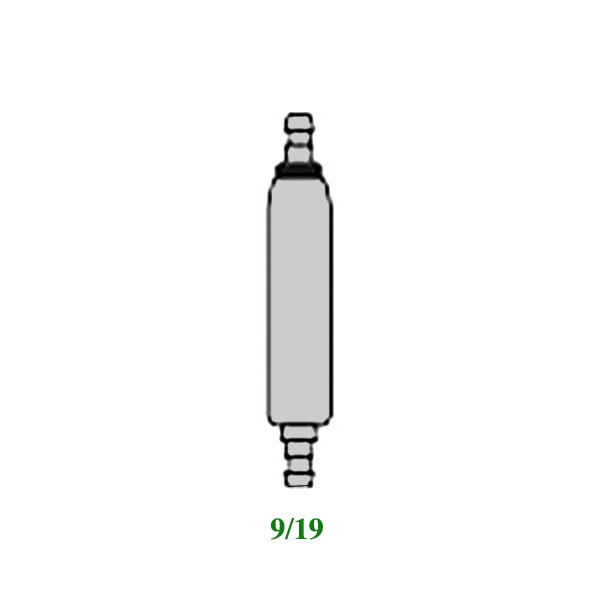

PaediGAV 9/19 Valve:

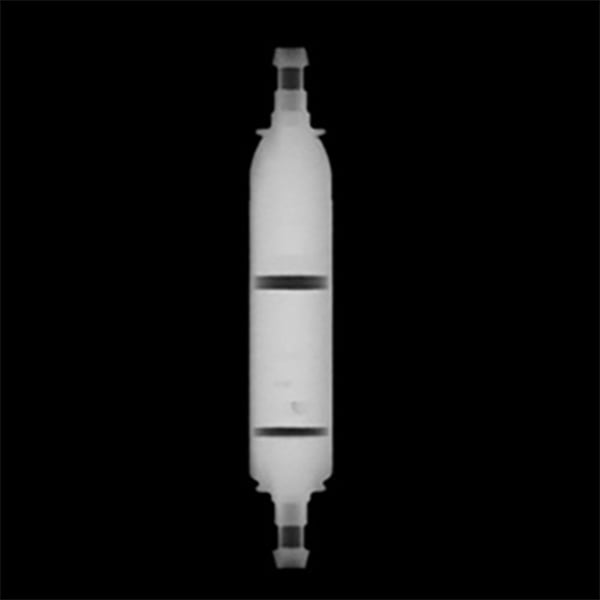

paediGAV 9/24 Valve:

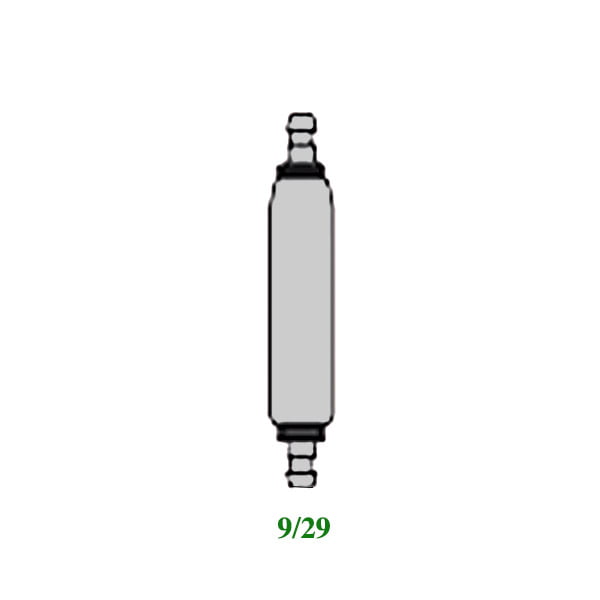

paediGAV 9/29 Valve:

GAV Valves

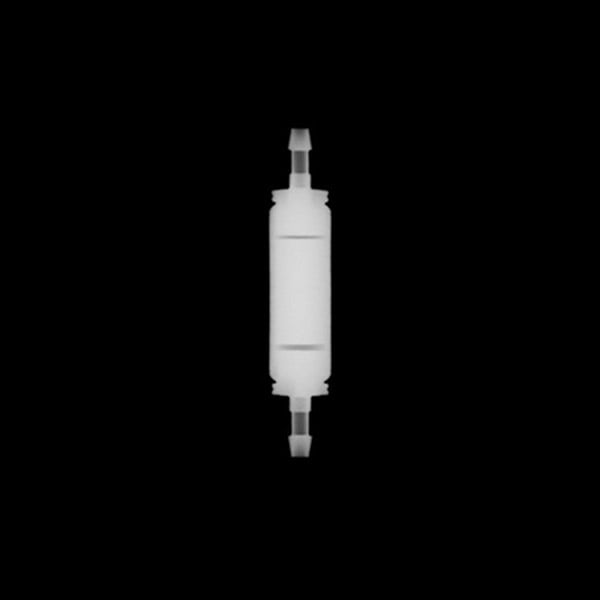

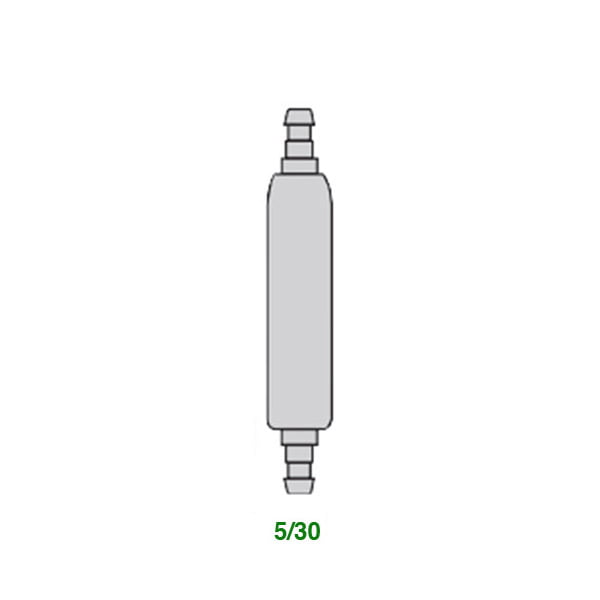

GAV 5/30:

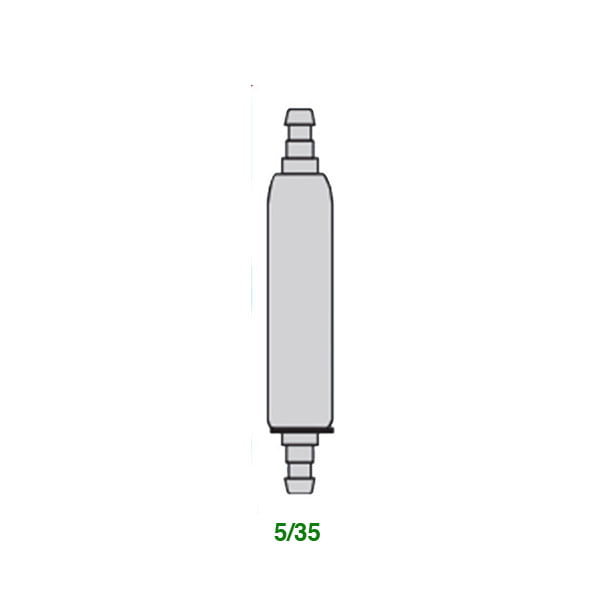

GAV 5/35:

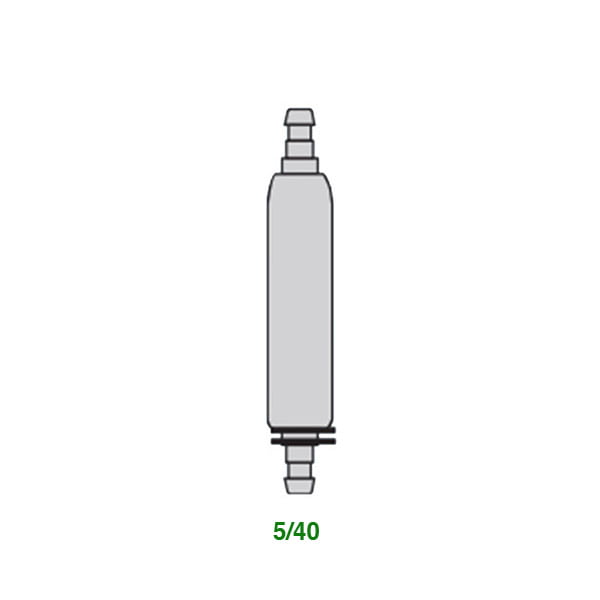

GAV 5/40:

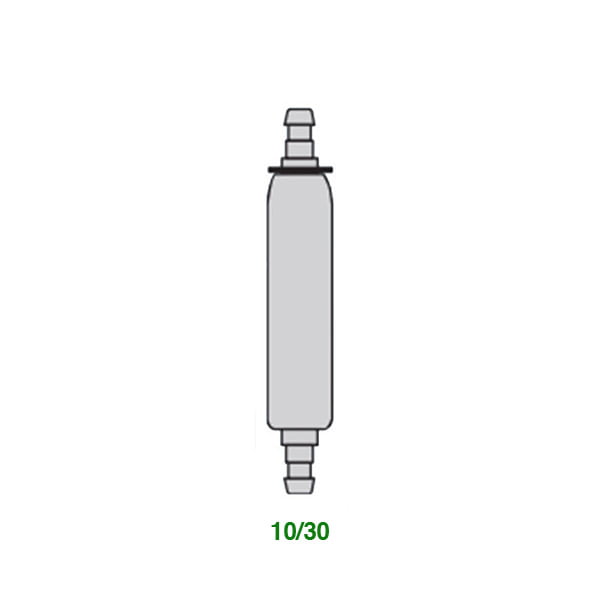

GAV 10/30:

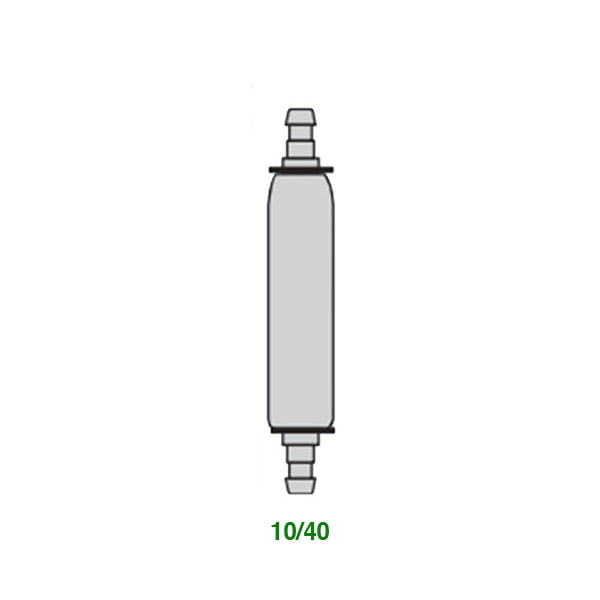

GAV 10/40:

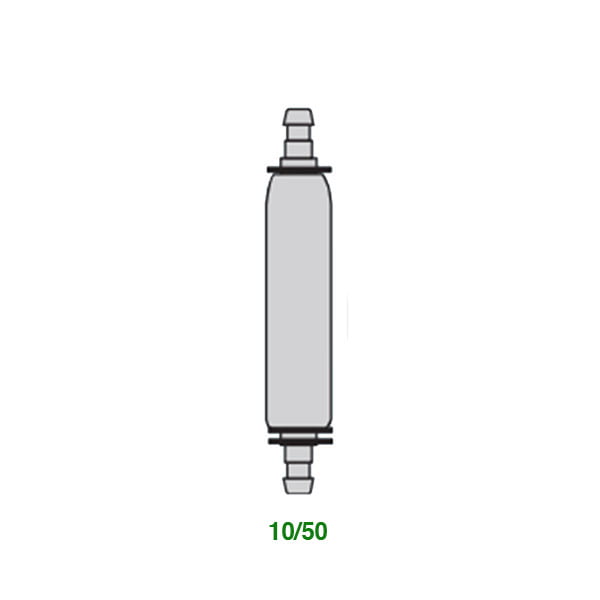

GAV 10/50:



Shunt Assistant Valve

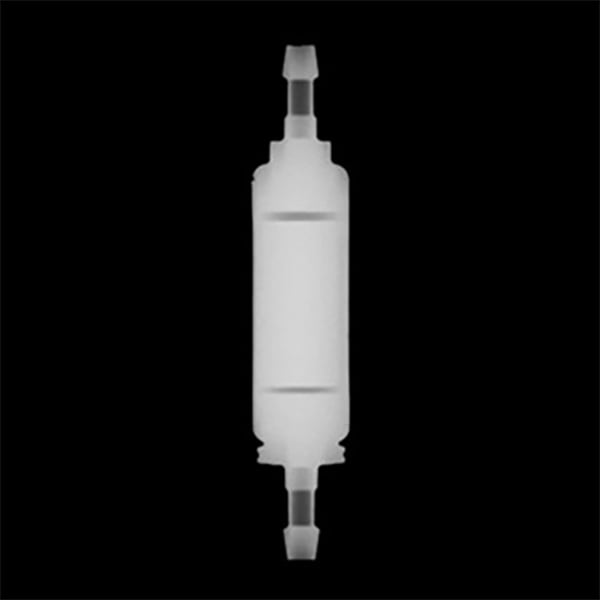

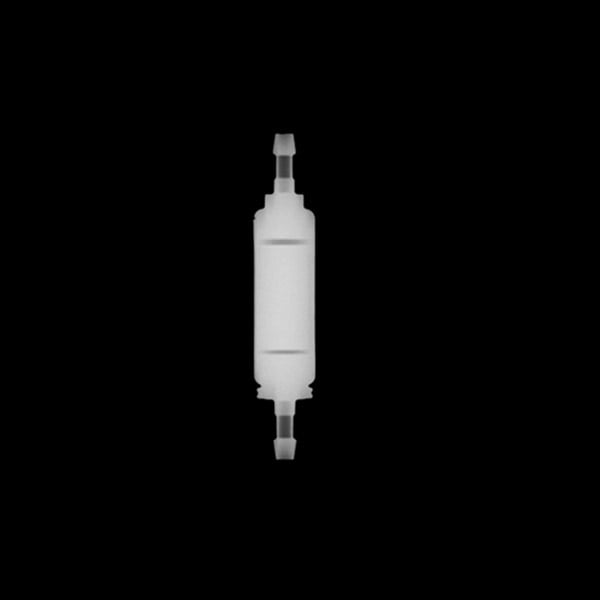

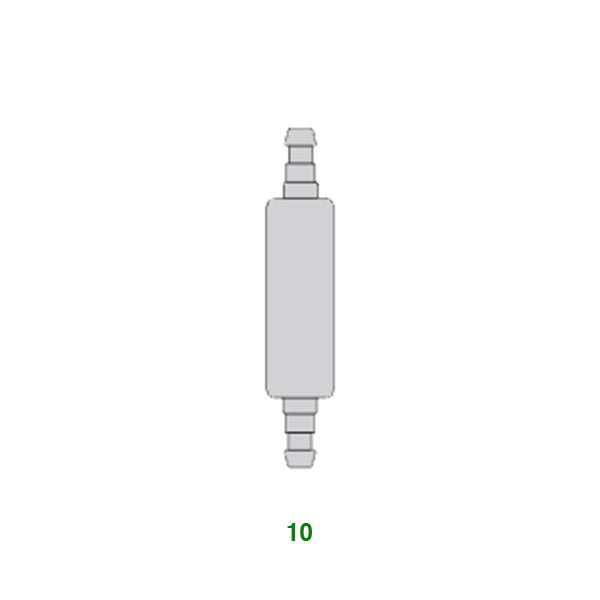

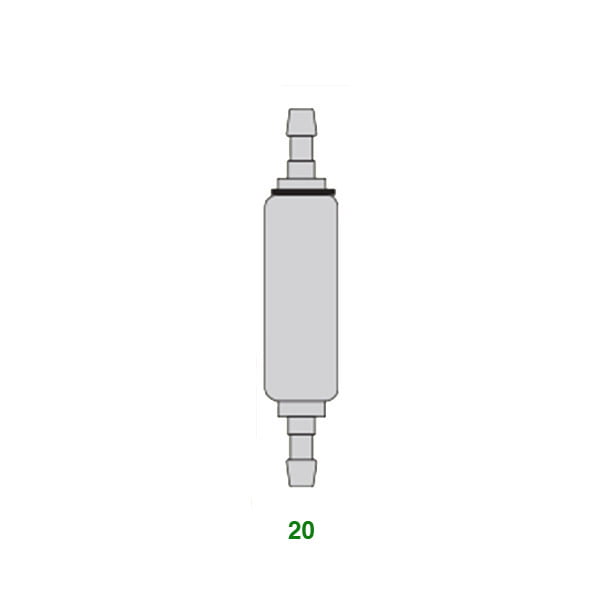

Paedi-ShuntAssistant 10 Valve:

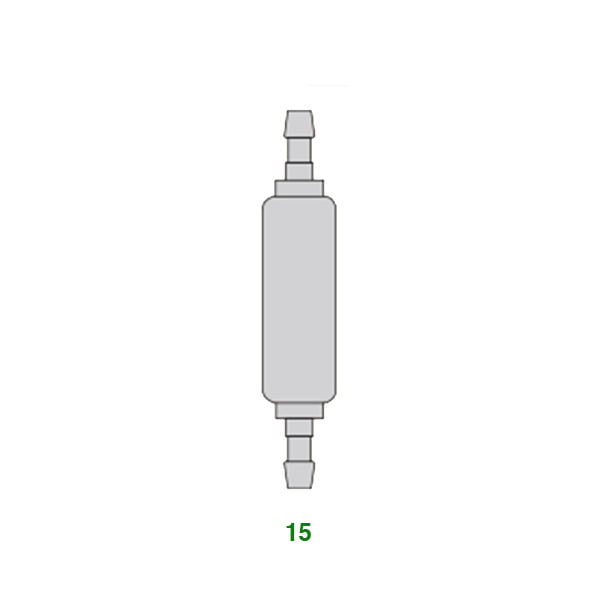

ShuntAssistant 15 Valve:
ShuntAssistant 20 Valve:

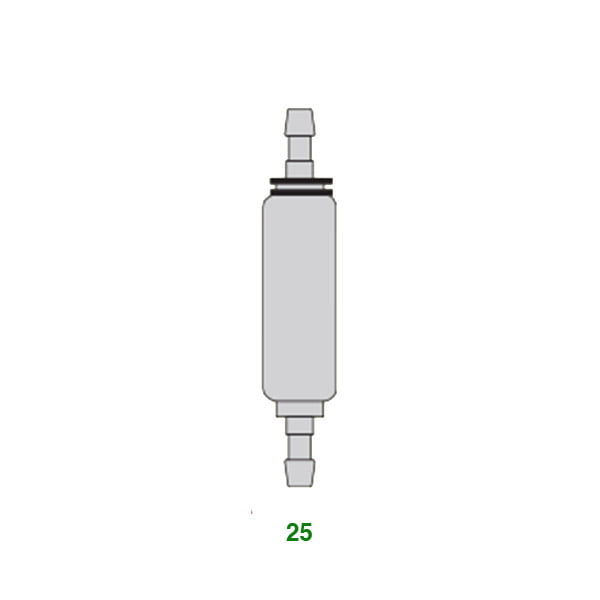

ShuntAssistant 25 Valve:

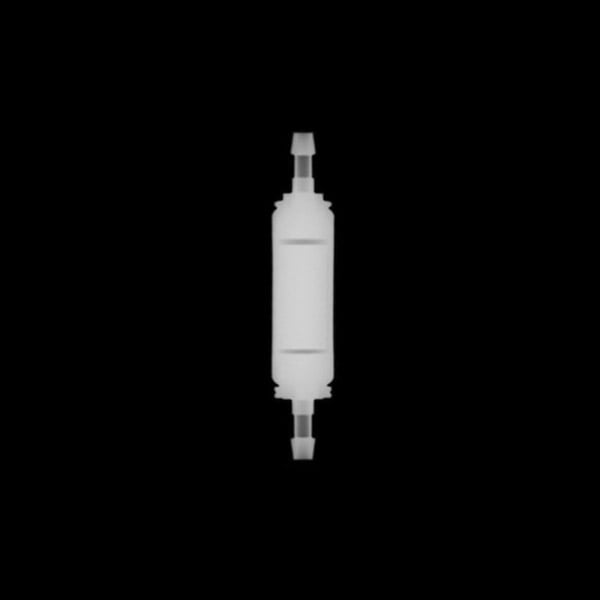

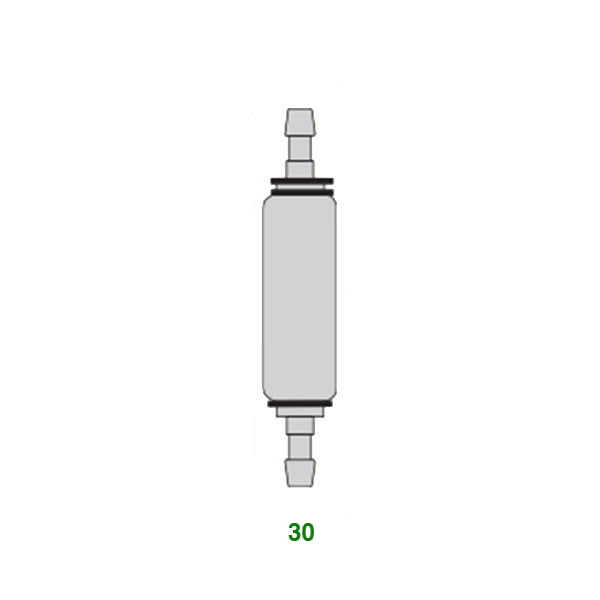

ShuntAssistant 30 Valve:

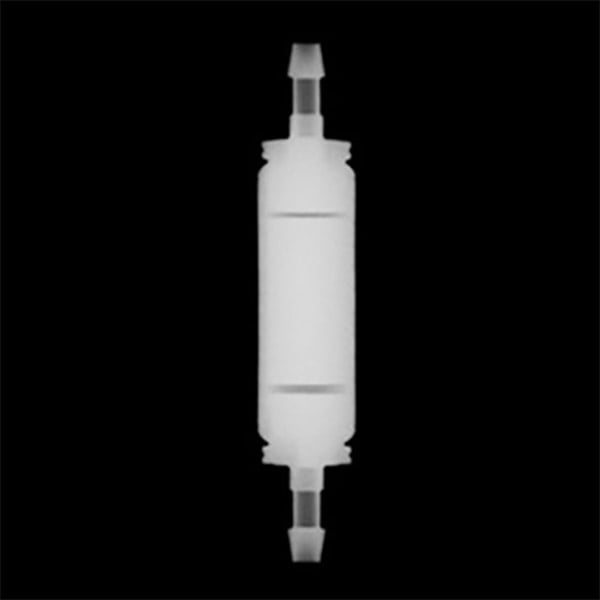

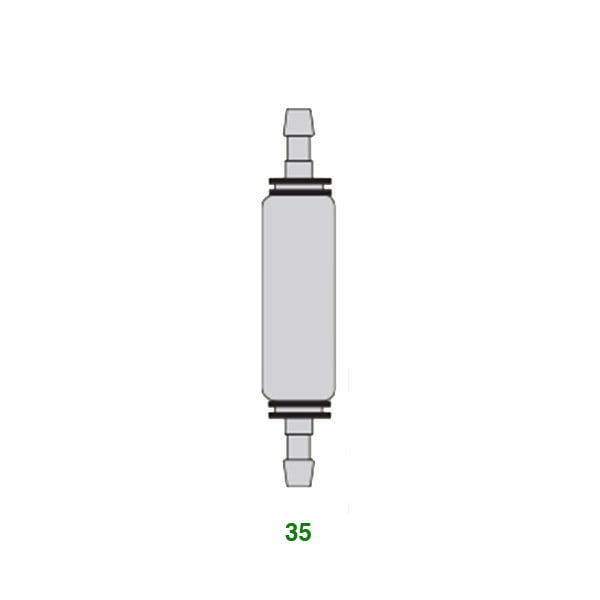

ShuntAssistant 35 Valve:

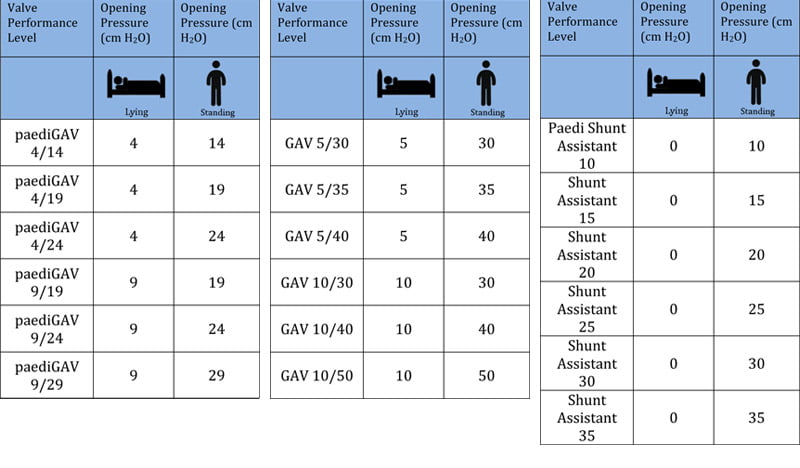

Valve Opening Pressures

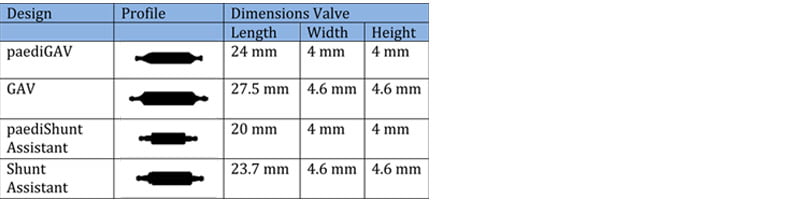

Valve Dimensions



Valve Assemblies

Available configurations:

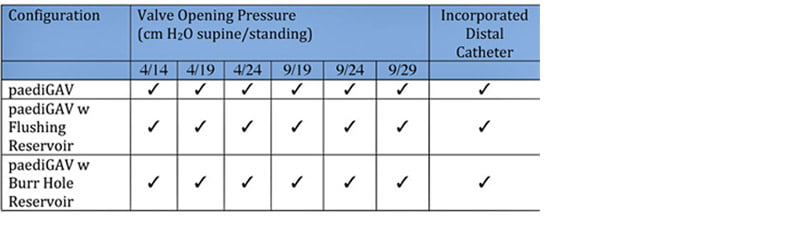

PaediGAV

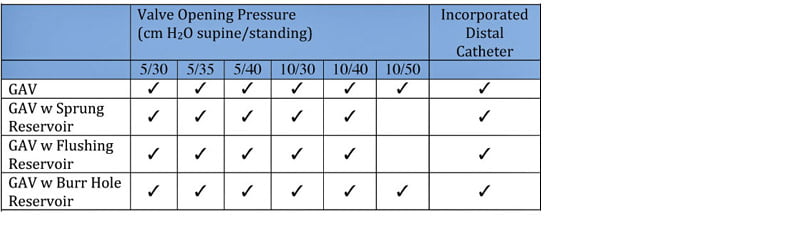

GAV



Shunt Assistant
